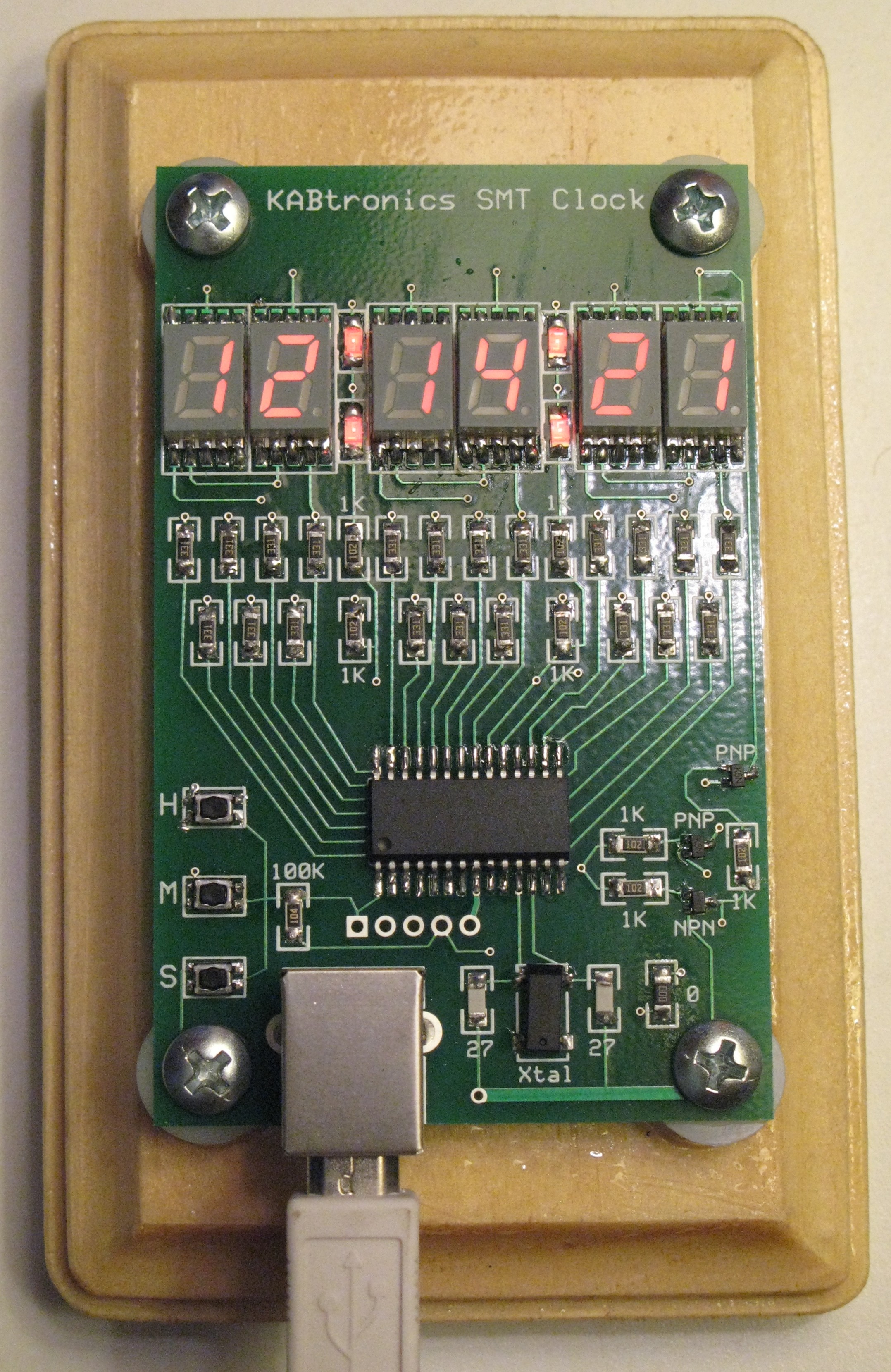

Surface Mount Technology Clock

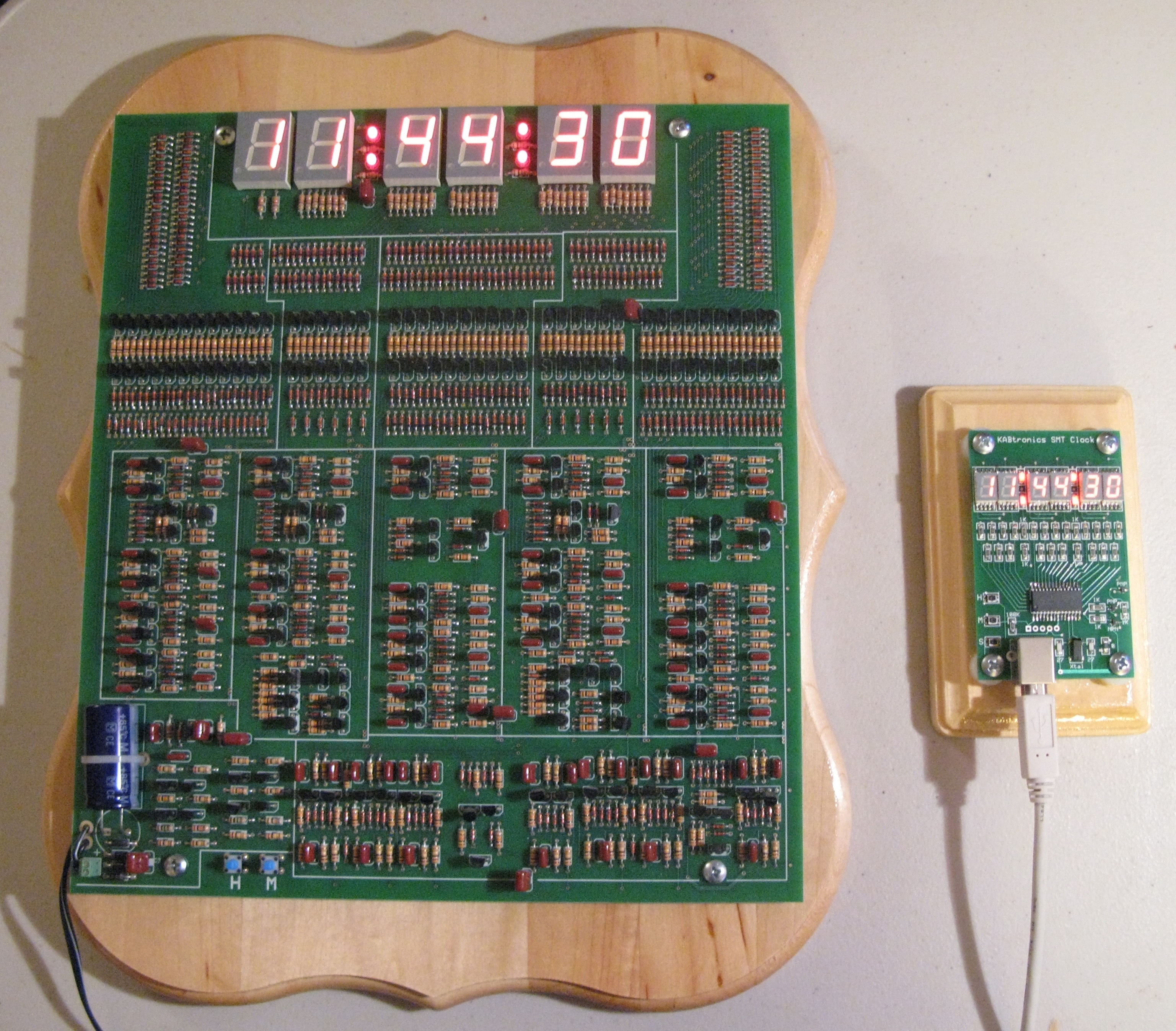

This is a kit using 1995 era surface mount components to implement the same functions as the Transistor Clock for the purpose
of comparison.
Features:
- Seconds reset switch
- Crystal oscillator time base
- 12 hour display
This clock runs on 5 volts from either the supplied wall module or any computer using the supplied USB cable. The kit includes;
- IC, resistors, capacitors, displays, LEDs, etc.
- 5 Volt power module and USB cable
- Wood plaque and mounting hardware
- 3.5"x 2.25" Printed Circuit Board with silk screen
- Assembly manual
- Solder. solder removal braid
