Manual

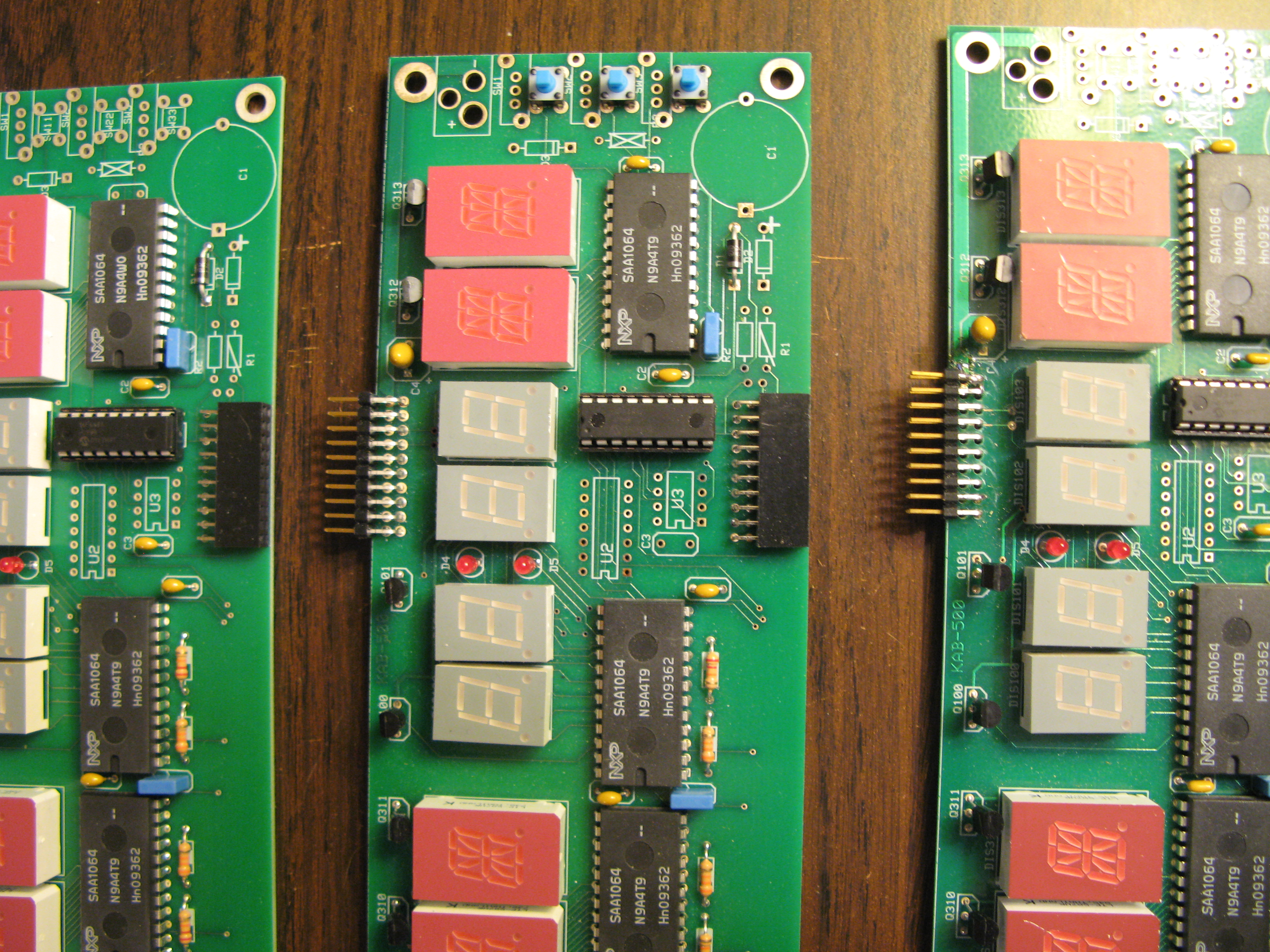

Boards connect above and below

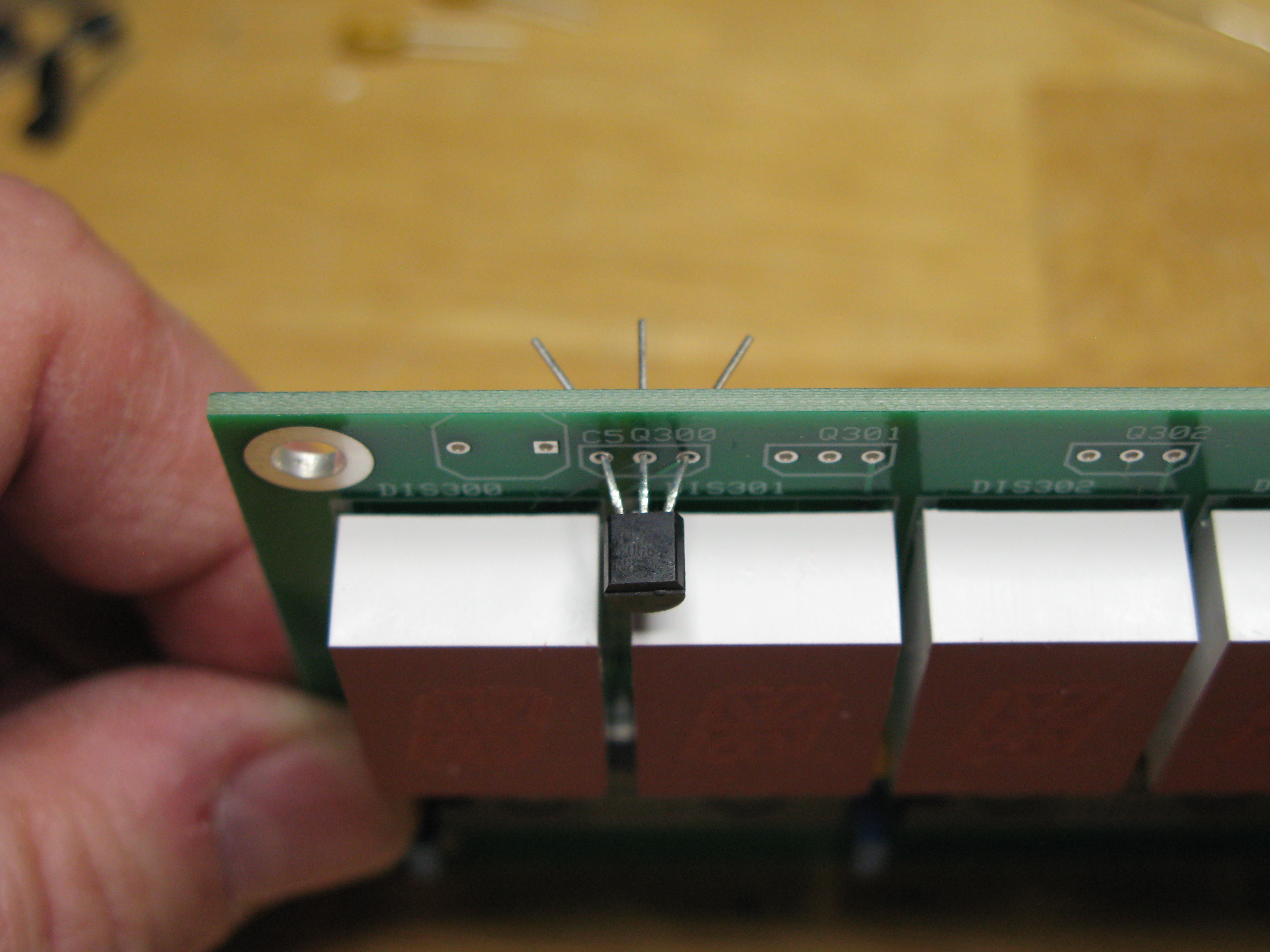

Loading components

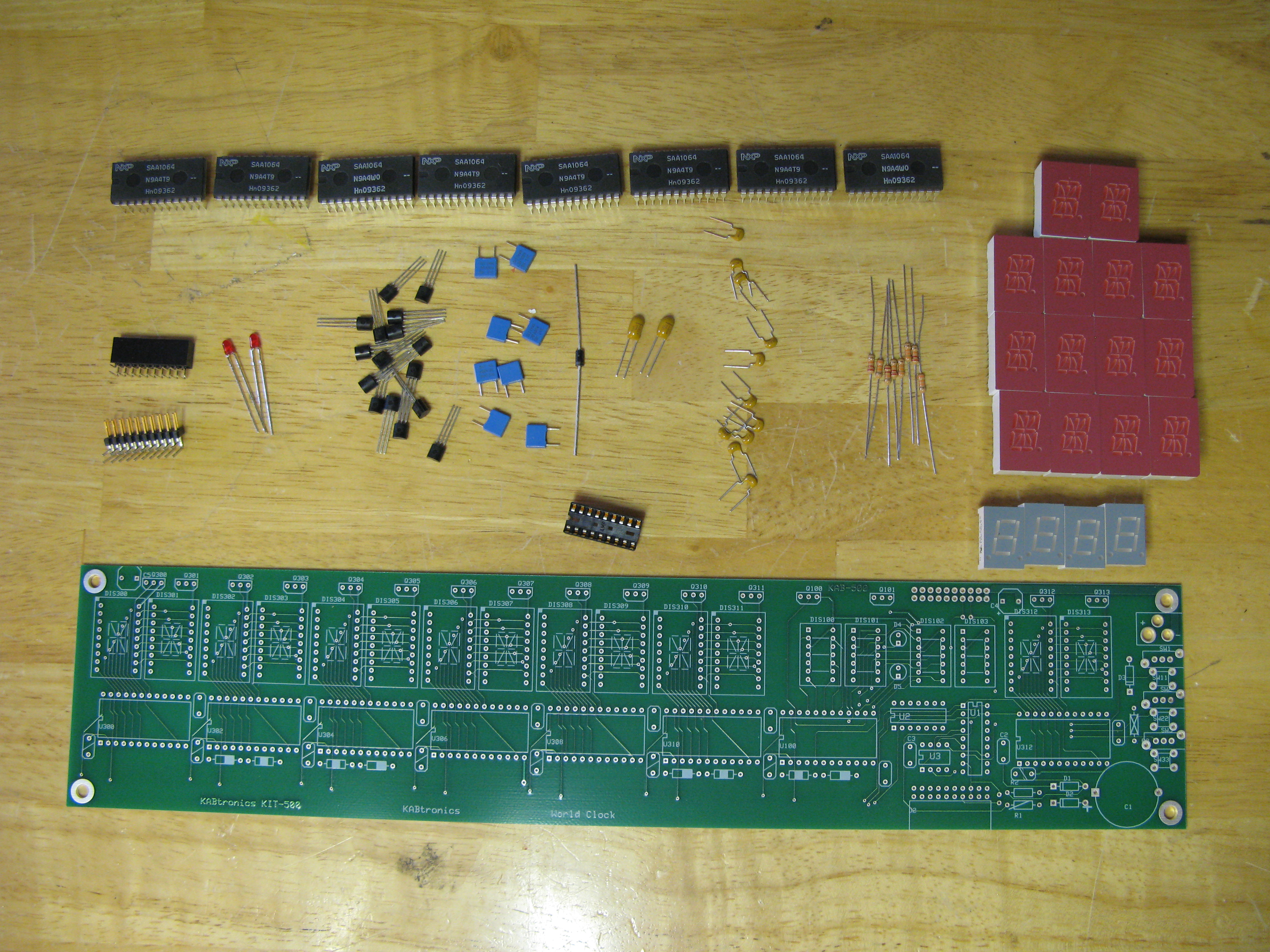

Slice parts

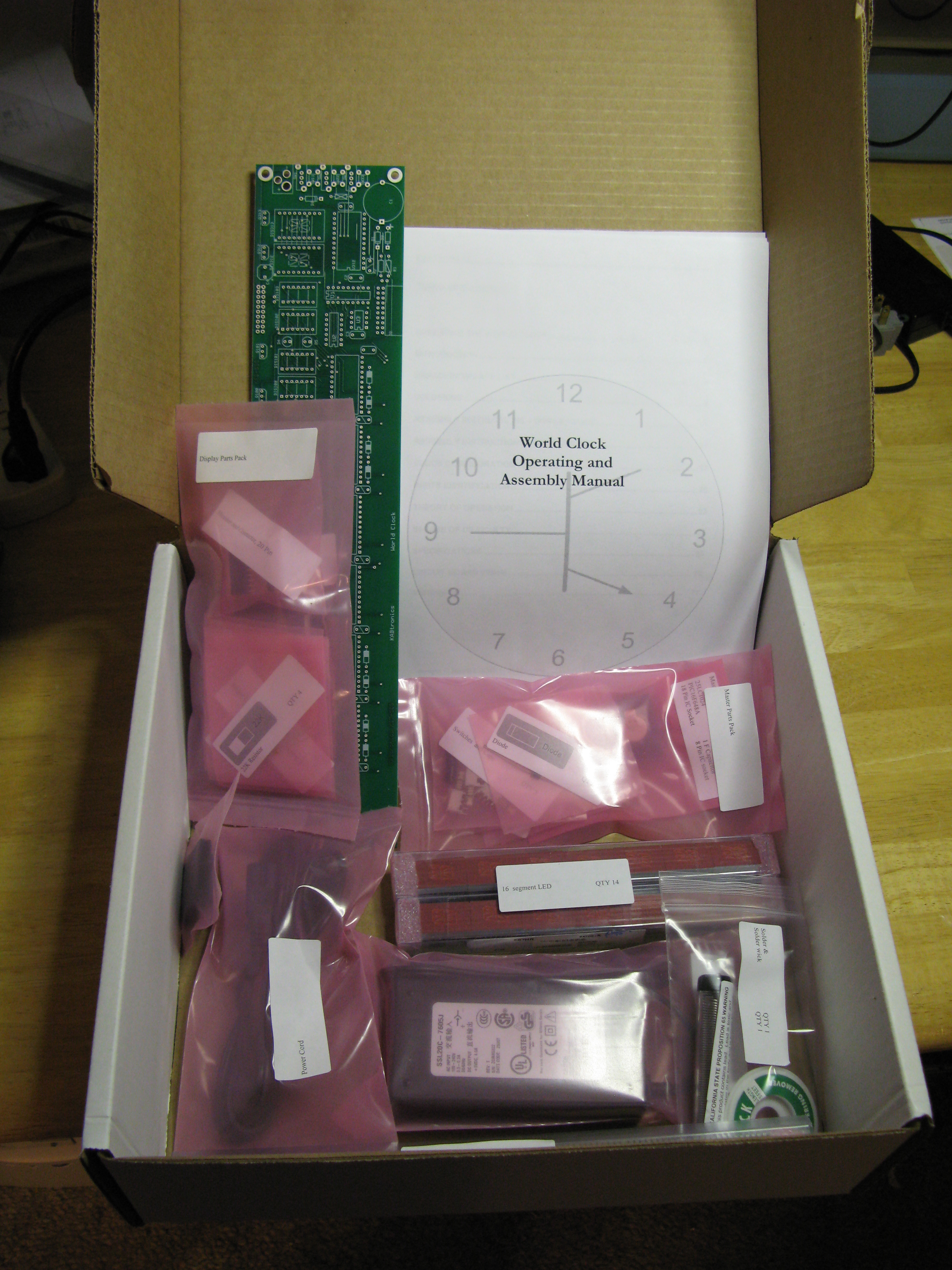

Slice kit
The Assembly/Operating manual on the right has details of the clock with schematics.

Cases and Filters:
This kit supplies the display circult boards that can be used to construct a multi-time zone clock.  Cases and acrylic sheets are not supplied.

Accuracy:
1 minute/year between 0-40 Celsius based on a TCXO

Daylight savings Settings:
The clock uses current date to adjust UTC offsets on preset dates.

Number of boards:
Among the limitations are connector current and power module limits.  Each board draws about 2/3 Amp.  Up to six boards is easy, after that special handling is required - see manual.
